Intex heat pump

Description:

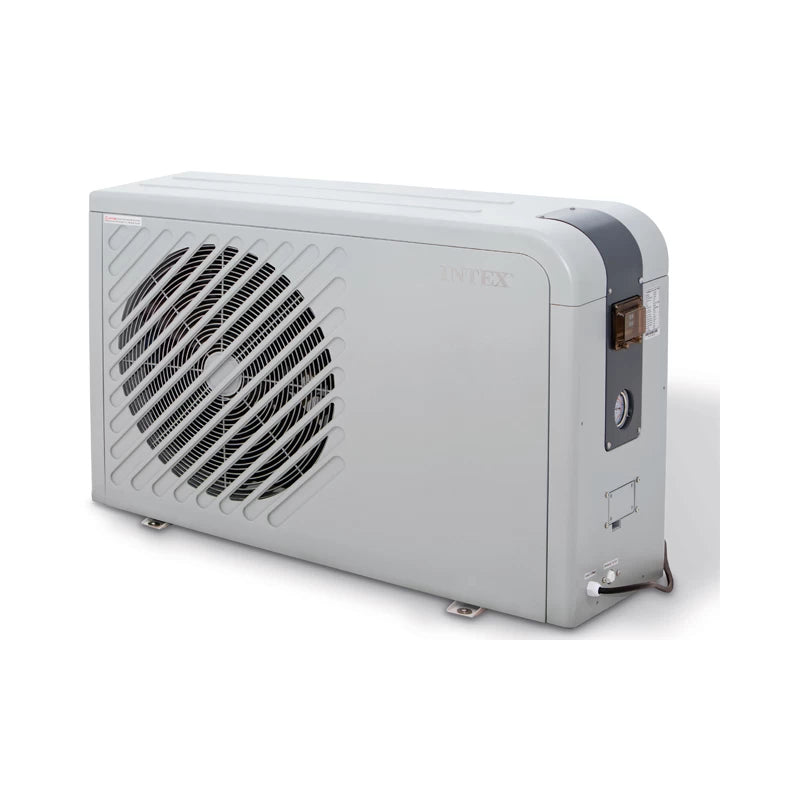

With the "Intex 28614 Heat Pump" compressor pool water heater, you can now extend your swimming season. In combination with the solar heating awning, it increases the temperature of the pool water by 5 C. The intuitive LCD control panel is easy to use. The titanium heat exchanger is protected against leakage and corrosion. The water heater can be used in stationary above-ground or prefabricated above-ground basins.

Mains voltage: 220-240V/50Hz
Rated current: 7A
Fuse: 15A
Recommended pool water capacity: 10 - 22 m3
Recommended water flow: 2.5 m3/h
Protection class: I
Heat exchanger: titanium in PVC tank.

Compressor Type/Refrigerant: Rotary / R410a
Connection (inlet/output): 50 mm fittings (38 mm hoses can be connected with threaded connection)
Noise level at a distance of 1 m: 52 dB

- Heating power at ambient temperature = 27 °C and water temperature = 27 °C:

Heating capacity: 8.5 kWh
Power consumption: 1.5 kWh
Efficiency: 5.5

Heating power at ambient temperature = 15 °C and water temperature = 26 °C:

Heating capacity: 6 kWh
Power consumption: 1.4 kWh
Efficiency: 4.2
